CMaterialParam Class Reference

Class for Material Parameter. More...

#include "MaterialParam.h"

Collaboration diagram for CMaterialParam:

Public Member Functions
	CMaterialParam ()
	~CMaterialParam ()
GEO_PARAMETER	BuildMaterialParam (char *pszMaterialName, bool &bResult)
	Load material parameter. More...
GEO_PARAMETER	BuildMaterialParam (MATERIAL_INDEX material, MATERIAL_INDEX material2, bool &bResult)
	Load material parameter. More...
GEO_PARAMETER	BuildMaterialParam (MATERIAL_INDEX material, bool &bResult)
	Load material parameter. More...

Detailed Description

Class for Material Parameter.

Date

03/Oct/2014

Definition at line 19 of file MaterialParam.h.

Constructor & Destructor Documentation

CMaterialParam::CMaterialParam

(

)

Definition at line 14 of file MaterialParam.cpp.

{
}

CMaterialParam::~CMaterialParam

(

)

Definition at line 19 of file MaterialParam.cpp.

{
}

Member Function Documentation

GEO_PARAMETER CMaterialParam::BuildMaterialParam	(	char *	pszMaterialName,
		bool &	bResult
	)

Load material parameter.

Parameters

pszMaterialName	Material name string
bResult	When operation success assigned true, else assigned false

Returns

structure instance of material parameter

Definition at line 28 of file MaterialParam.cpp.

References ATOM_NUM_BASE, CUtility::ConvertLower(), GaAs, InAs, Oxide, and Si.

Referenced by CHamiltonianBuilder::BuildOffsiteMatrixFor10Band(), CGeometricShape::BuildPEBiasVector(), CGeometricShape::BuildPEHamiltonian(), and CHamiltonianBuilder::FillMatrixFor10Band().

{
    char                szMaterialName[1024];
    MATERIAL_INDEX      material;

    strcpy(szMaterialName, pszMaterialName);
    CUtility::ConvertLower(szMaterialName);

    if (!strcmp(szMaterialName, "si"))
        material = Si;
    else if (!strcmp(szMaterialName, "gaas"))
        material = GaAs;
    /*else if (!strcmp(szMaterialName, "as"))
        material = As;*/
    else if (!strcmp(szMaterialName, "inas"))
        material = InAs;
    else if (!strcmp(szMaterialName, "oxide"))
        material = Oxide;
    else
        material = ATOM_NUM_BASE;

    return BuildMaterialParam(material, bResult);;
}

Here is the call graph for this function:

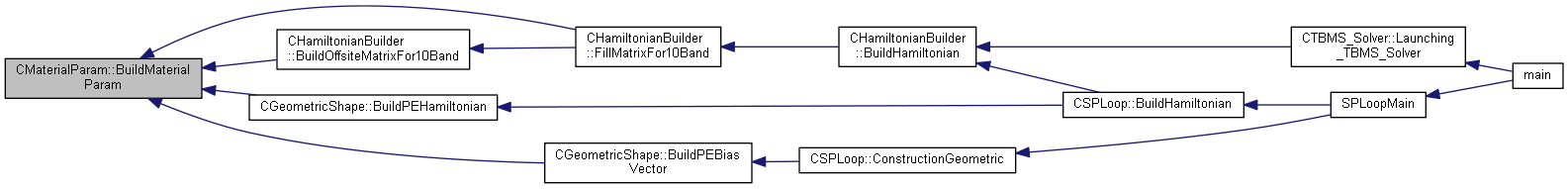

Here is the caller graph for this function:

GEO_PARAMETER CMaterialParam::BuildMaterialParam	(	MATERIAL_INDEX	material,
		MATERIAL_INDEX	material2,
		bool &	bResult
	)

Load material parameter.

Parameters

material	Material index
material	Material index 2
bResult	When operation success assigned true, else assigned false

Returns

structure instance of material parameter

Definition at line 98 of file MaterialParam.cpp.

References GaAs, InAs, CMaterialParameterSetting::SetGaAsParameter(), CMaterialParameterSetting::SetInAsParameter(), CMaterialParameterSetting::SetSiParameter(), Si, and GEO_PARAMETER::strMaterialType.

{
    GEO_PARAMETER       parameter;
    MATERIAL_INDEX      multimater = (MATERIAL_INDEX)(material | material2);

    switch (multimater)
    {
    case Si:
        strcpy(parameter.strMaterialType, "Si");
        CMaterialParameterSetting::SetSiParameter(&parameter);
        bResult = true;
        break;
    case GaAs:
        strcpy(parameter.strMaterialType, "GaAs");
        CMaterialParameterSetting::SetGaAsParameter(&parameter);
        bResult = true;
        break;
    case InAs:
        strcpy(parameter.strMaterialType, "InAs");
        CMaterialParameterSetting::SetInAsParameter(&parameter);
        bResult = true;
        break;
    default:
        bResult = false;
        break;
    }

    return parameter;
}

Here is the call graph for this function:

GEO_PARAMETER CMaterialParam::BuildMaterialParam	(	MATERIAL_INDEX	material,
		bool &	bResult
	)

Load material parameter.

Parameters

material	Material index
bResult	When operation success assigned true, else assigned false

Returns

structure instance of material parameter

Definition at line 57 of file MaterialParam.cpp.

References GEO_PARAMETER::feips, GaAs, InAs, Oxide, CMaterialParameterSetting::SetGaAsParameter(), CMaterialParameterSetting::SetInAsParameter(), CMaterialParameterSetting::SetSiParameter(), Si, and GEO_PARAMETER::strMaterialType.

{
    GEO_PARAMETER       parameter;

    switch (material)
    {
    case Si:
        strcpy(parameter.strMaterialType, "Si");
        CMaterialParameterSetting::SetSiParameter(&parameter);
        bResult = true;
        break;
    case GaAs:
        strcpy(parameter.strMaterialType, "GaAs");
        parameter.feips = 12.9;
        CMaterialParameterSetting::SetGaAsParameter(&parameter);
        bResult = true;
        break;
    case InAs:
        strcpy(parameter.strMaterialType, "InAs");
        parameter.feips = 15.15;
        CMaterialParameterSetting::SetInAsParameter(&parameter);
        bResult = true;
        break;
    case Oxide:
        parameter.feips = 3.9;
        bResult = true;
        break;
    default:
        bResult = false;
        break;
    }

    return parameter;
}

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• D:/For Doxygen/MaterialParam.h
• D:/For Doxygen/MaterialParam.cpp
